Bộ thiết bị đo công suất quang SimpliFiber Multimode (850/1300) - FTK1000

Environmental Specifications

Operating Temperature

-10º C to 50º C

Storage Temperature

-20º C to 50º C

Operating Humidity

95% (10º C to 35º C) Non-Condensing 75% (35º C to 40º C) Non-Condensing Uncontrolled <10º C

EMI, RFI, EMC

Standards compliant¹

Detector Type

InGaAs

Calibrated Wavelengths

850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm

Measurement Range

+10 to -52 dBm (850 nm)
+10 to -60 dBm (1300, 1310, 1490, 1550, 1625 nm)

Power Measurement Linearity

±0.2 dB (850 nm)¹ ±0.1 dB (1300, 1310, 1490, 1550, 1625 nm)²

Power Measurement Uncertainty³

±0.25 dB

Display Resolution, dB or dBm

0.01 dB

Auto Dual-Wavelength Switching

Yes

Power Display Units

dBm, mW, μW

Auto-Wavelength Detection

Yes

Data Storage

1000 records, multiple wavelengths per record

External Interface

USB, 2.0 full speed

Optical Connector

Removable adapter, SC adapter as default, optional adapters include LC, ST

Display update rate

1 reading per second

Reference

Individually set for each wavelength

FindFiber ID detection

Yes

Power Requirement

2 AA Alkaline batteries

Battery Life⁴

> 50 Hours (typical)

Automatic Power Off

10, 20, 30 or 60 minutes (can be disabled by user)

Low Battery Warning

Yes, low battery icon blinks

Size (L x W x H)

6.4 in x 3.2 in x 1.5 in (16.5 cm x 8.0.cm x 3.9 cm)

Weight

11.5 oz (325 grams)

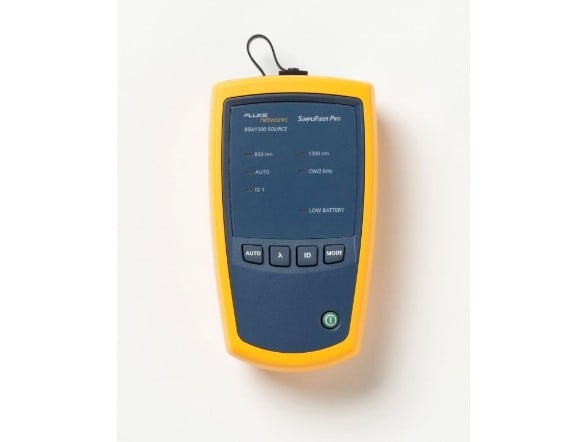

Emitter Type

LED

Central Wavelength

850 nm, 1300 nm

Wavelength Accuracy

850 nm: +/-30 nm
1300 nm: +/- 20 nm

Spectral Width (FWHM)

850 nm: 50 nm (typical)
1300 nm: 135 nm (typical)

Minimum Output Power

850/1300 nm: ³ -20 dBm

Power Output Stability¹

±0.1 dB over 8 hours

Auto Dual-Wavelength Switching

Yes. Can be enabled/disabled by user.

Optical Output Connector

Fixed SC

FindFiber Code Generation

Yes. Fixed at ID 1.

Modes

CW, 2 kHz modulated, Auto-wavelength

Power Requirement

2 AA Alkaline batteries.

Battery Life²

40 hrs (typical)

Automatic Power Off

30 minutes (can be disabled by user)

Low Battery Warning

Yes, LED blinks

Size (L x W x H)

5.6 in x 3.2 in x 1.6 in (14.2 cm x 8.1 cm x 4.1cm)

Weight

1.8 oz (278 g)

Emitter Type

1310 nm/1550 nm: dual FP laser
1490 nm/1625 nm: dual DFB laser

Central wavelength

1310 nm: ±20 nm
1550 nm: ±30 nm
1490 nm: ±3 nm
1625 nm: ±5 nm

Wavelength Accuracy

1310 nm: +/- 20 nm
1550 nm: +/- 30 nm

Spectral width (RMS)

1310 nm: 2 nm (maximum)
1550 nm: 3 nm (maximum)
1490 nm/1625 nm: 1 nm (maximum)

Minimum output power

1310/1550 nm ≥ -7dBm (typical)
1490 nm/1625 nm: ≥ -3 dBm (typical)

Power Output Stability¹

±0.25 dB over 8 hours

Auto Dual-Wavelength Switching

Yes. Can be enabled or disabled by user.

Optical Connector

Fixed SC

Launch Condition

9/125 μm fiber

FindFiber Code Generation

1310/1550 source is fixed at ID 2
1490 nm/1625 nm is fixed at ID 3.

Modes

CW, 2 kHz modulated, Auto-wavelength

Power Requirement

2 AA Alkaline batteries

Battery Life²

30 hrs (typical)

Automatic Power Off

30 minutes (can be enabled or disabled by user)

Low Battery Warning

LED blinks.

Size (L x W x H)

5.6 in x 3.2 in x 1.6 in (14.2 cm x 8.1 cm x 4.1cm)

Weight

9.8 oz (278 grams)

Emitter Type

Laser

Source Connector

Fixed SC

FindFiber Code Generation

1 through 8. Default is 3.

Power On/Low-battery Indicator

LED

Power Requirement

2 AA Alkaline batteries

Battery Life

> 80 Hours (typical)

Automatic Power Off

30 minutes

Low Battery Warning

LED blinks

Size (L x W x H)

7.1 in x 1.3 in x 1.0 in (17.9 cm x 3.2 cm x 2.5 cm)

Weight

4.4 oz (125 g)

Safety

Meets Class 1 CDRH
