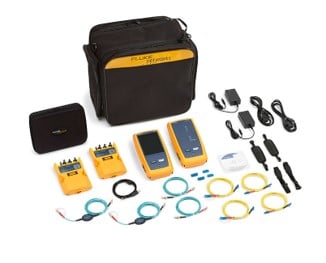

Thiết bị đo kiểm suy hao & chứng nhận cáp quang CertiFiber® Pro (CFP2-100-Q)

Power Meter Specifications

Input Connector

Interchangeable connector adapter (LC standard, SC, ST and FC optional)

Detector Type

InGaAs

Wavelengths

850 nm, 1300 nm, 1310 nm, 1550 nm

Power Measurement Range

0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths)

Power Measurement Uncertainty^1,2

< +/- 5% +/- 32 pW

Measurement Linearity³

< ± 0.1 dB

Re-calibration Period

1 year

Integrated Wi-Fi

Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)

1. +/- 100 pW at 850 nm 2. Under the following conditions: Power level 100 μW (-10 dBm), continuous wave (CW) for absolute power at 850 nm and 1310 nm. Divergent beam, NA = 0.20 for 50/125 μm and NA = 0.14 for 9/125 μm. Ambient temperature 23° ± 1°C. SC/UPC connector with ceramic ferrule. After a 5 minute warm-up. Traceable to NIST. 3. -3 dBm to -55 dBm at 850 nm and 1310 nm. Ambient temperature 23° ± 1°C. After a 5 minute warm-up.

Source Wavelengths

850 nm, 1300 nm, 1310 nm, 1550 nm

Power Measurement Range

0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths)

Power Measurement Uncertainty^{1, 2}

< +/- 5% +/- 32 pW

Measurement Linearity³

< ± 0.1 dB

Re-calibration Period

1 year

1. +/- 100 pW at 850 nm 2. Under the following conditions: Power level 100 μW (-10 dBm), continuous wave (CW) for absolute power at 850 nm and 1310 nm. Divergent beam, NA = 0.20 for 50/125 μm and NA = 0.14 for 9/125 μm. Ambient temperature 23° ± 1°C. SC/UPC connector with ceramic ferrule. After a 5 minute warm-up. Traceable to NIST. 3. -3 dBm to -55 dBm at 850 nm and 1310 nm. Ambient temperature 23° ± 1°C. After a 5-minute warm-up.

Visual Fault Locator (VFL)

Title

Requirement

Output Power

>-5 dBm <0 dBm SMF-28 singlemode fiber Continuous wave SC/UPC connector

Operating Wavelength

650 nm nominal

Output Modes

Continuous wave
Pulsed mode (2 Hz to 3 Hz blink frequency)

Connector Adapter

2.5 mm universal

Laser Safety

Class II CDRH
Over operating temperature range

Title

Requirement

Operating Temperature

-10° C to 45° C

Storage Temperature

-10° C to +60° C

Operating Relative Humidity
% RH without condensation

0 % to 90 %, 32 °F to 95 °F (0° C to 35° C)
0 % to 70 %, 95 °F to 113 °F (35° C to 45° C)

Vibration

Random, 2 g, 5 Hz-500 Hz

Shock

1 m drop test with and without module and adapters

Safety

CSA C22.2 No. 1010.1: 1992
EN 61010-1 1st Edition + Amendments 1, 2

Pollution Degree

2

Altitude

Operating: 4,000 m; storage: 12,000 m

EMC

EN 61326–1
