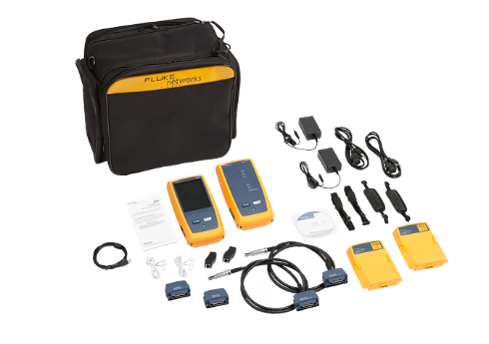

Thiết bị đo phân tích & chứng nhận cáp đồng DSX CableAnalyzer (DSX2-5000 AP)

Shielded and unshielded pair LAN cabling

TIA Category 3, 4, 5, 5e, 6, 6A, 8: 100 Ω ISO/IEC Class C, D, E, E_A, F, F_A and I/II: 100 Ω and 120 Ω

Permanent link adapters

Plug type: shielded RJ45
Optional Plug type: Tera

Channel Adapters

Jack type: shielded RJ45
Optional Jack type: Tera, GG45

TIA

Category 3, 4, 5, 5e, 6, 6A, 8 per ANSI/TIA-568.2-D

ISO/IEC

Class C and D, E, E_A, F, F_A and I/II certification per ISO/IEC

Maximum frequency

DSX-8000: 2000 MHz;
DSX-5000: 1000 MHz

Speed of Autotest

DSX-8000: Full 2-way Autotest of Category 5e or 6/Class D or E: 7 seconds. Full 2-way Autotest of Category 6A/Class E_A: 8 seconds. Full 2-way Autotest of Category 8: 16 seconds

DSX-5000: Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds. Full 2-way Autotest of Category 6A/Class EA: 10 seconds

Supported test parameters (The selected test standard determines the test parameters and the frequency range of the tests)

Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Pair-to-Pair Resistance Unbalance, Pair Resistance Unbalance, Insertion Loss (Attenuation), Return Loss (RL), Common Mode Return loss (CMRL), Near End Crosstalk (NEXT), Far End Crosstalk (FEXT), Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien NEXT (PS ANEXT), Power Sum Alien Attenuation NEXT Ratio Far End (PS AACR-F), Common Mode to Differential Mode NEXT (CDNEXT),Transverse Conversion Loss (TCL), Equal Level Transverse Conversion Transfer Loss (ELTCTL)

Input protection

Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage

Display

5.7 in LCD display with a projected capacitance touchscreen

Case

High impact plastic with shock absorbing overmold

Dimensions

Main Versiv unit with DSX module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)

Weight

Main Versiv unit with DSX module and battery installed: 3 lbs, 5oz (1.28 kg)

Main unit and remote:

Lithium ion battery pack, 7.2 V

Typical battery life:

8 hours

Charge time*

Tester off: 4 hours to charge from 10 % capacity to 90 % capacity.

Languages supported

English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian

Calibration

Service center calibration period is 1 year

Integrated Wi-Fi

Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)

Operating Temperature

32°F to 113°F (0°C to 45°C)

Storage Temperature

-14°F to +140°F (-10°C to +60°C)

Operating relative humidity

0 % to 90 %, 32°F to 95 °F (0°C to 35°C)
0 % to 70 %, 95°F to 113 °F (35°C to 45°C)

Vibration

Random, 2 g, 5 Hz-500 Hz

Shock

1 m drop test with and without module and adapter

Safety

CSA 22.2 No. 61010, IEC 61010-1 3^rd Edition

Operating altitude

13,123 ft (4,000 m)
10,500 ft (3,200 m) with ac adapter

EMC

EN 61326-1

Range

0 ns to 100 ns

Resolution

1 ns

Accuracy

± 10 ns

Range

0 Ω to 540 Ω

Resolution

0.1 Ω

Accuracy

± (1 Ω + 1 %)

Overload recovery time

Less than 10 minutes to rated accuracy following an overvoltage. Referencing is required after repeated or prolonged overvoltage.
