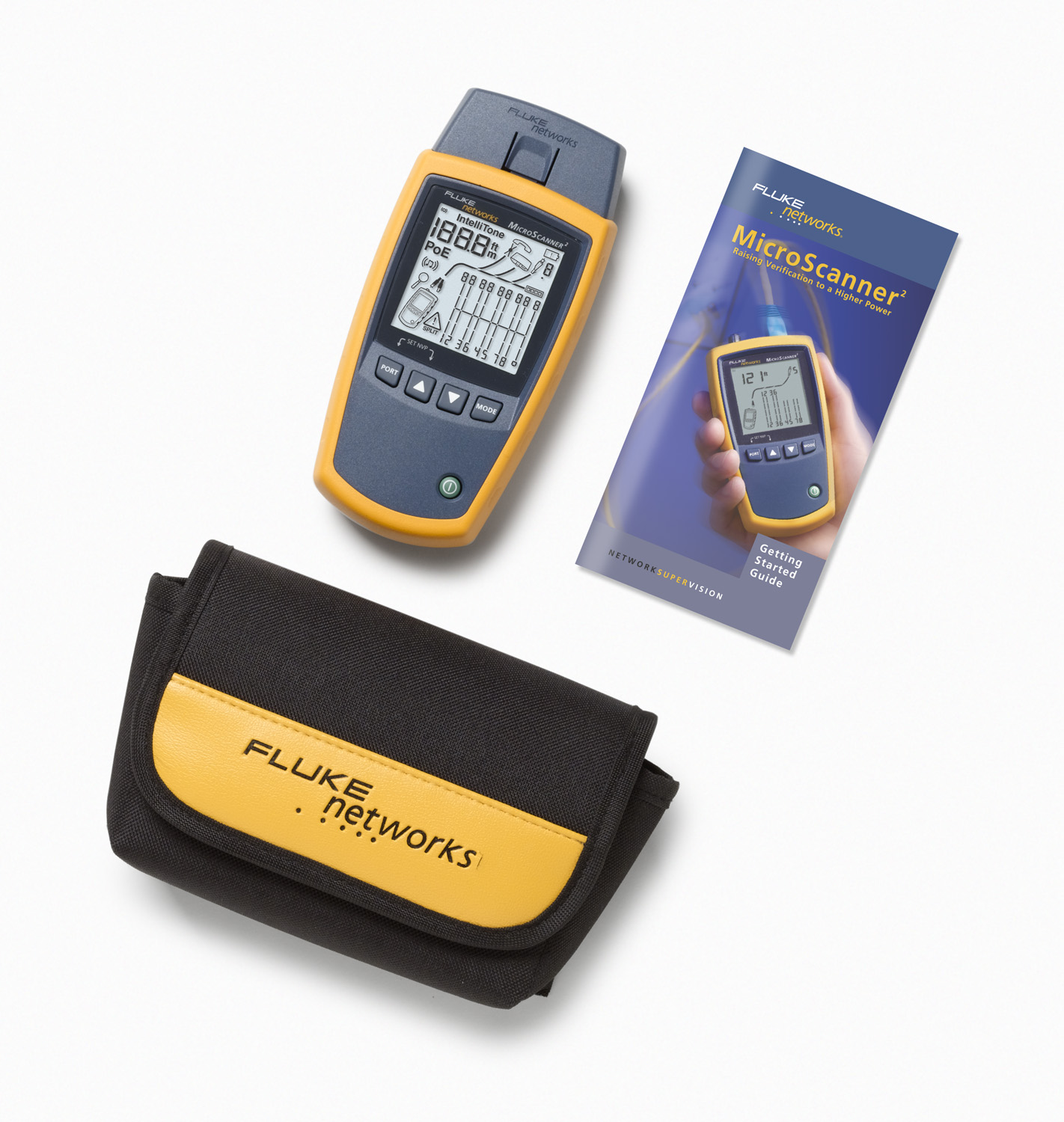

MicroScanner 2 and MicroScanner PoE Specifications |
Specifications apply at 23 °C (73 °F), unless otherwise noted. |
Environmental Specifications |
Operating temperature |
32 °F to 113 °F (0 °C to 45 °C) |
Storage temperature |
-4 °F to +140 °F (-20 °C to +60 °C) |
Operating relative humidity (% RH without condensation) |
90 % (50 °F to 95 °F 10 °C to 35 °C) 75 % (95 °F to 113 °F 35 °C to 45 °C) |
Shock and Vibration |
Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached |
Safety |
IEC 61010-1 3rd Edition |
Altitude |
4,000 m; Storage: 12,000 m |
EMC |
IEC 61326-1 |
General Specifications |
Test connectors |
Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner2: F-connector for coaxial cable. |
Power |
Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NIMH, NICAD |
Dimensions and weight (with batteries installed and wiremap adapter attached) |
3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) MicroScanner2: 10.6 oz (300 g) MicroScanner PoE: 10.6 oz (300 g) |
Display |
Monochrome LCD with backlight |
Test Modes |
Cable test |
Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen. |
Tone |
Generates Intellitone™ and normal analog toning signals |
PoE |
MicroScanner 2: Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices MicroScanner PoE: Solicits and detects the presence of 802.3af, at, bt, and UPOE (Cisco’s Universal Power over Ethernet) compatible PoE devices |
Performance Specifications |
Cable types tested |
Twisted pair: UTP, FTP, SSTP Coaxial (MicroScanner2): 75 Ω, 50 Ω, 93 Ω |
Length test |
Range: 460 m (1500 ft) Resolution: 0.3 m (1 ft) Typical accuracy: ± 4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error. Calibration: User-settable NVP for twisted pair and coax (MicroScanner2). Can determine actual NVP with known length of cable. |
Wiremap test |
Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults. |
Ethernet port detection |
MicroScanner 2: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, and 1 Gbps. MicroScanner PoE: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps. |
Tone generator |
Supports toning and cable mapping with a Fluke Networks digital IntelliTone™ probe. Generates four tones compatible with typical analog probes. SmartTone™ feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe. |
